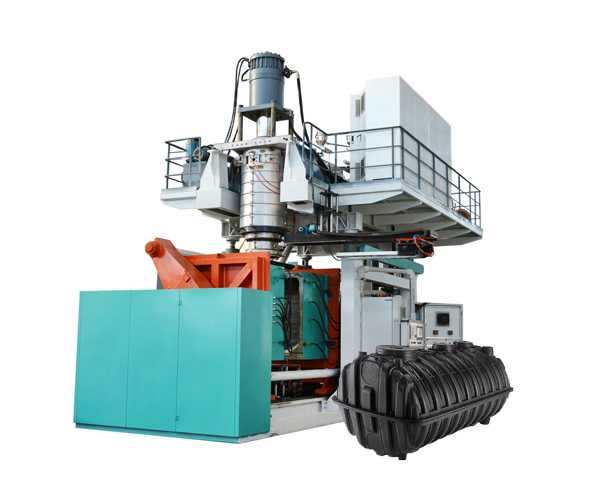

Underground Septic Tank Blow Molding Machine

A septic tank is an underground tank made of plastic through which domestic wastewater (sewage) flows for basic sewage treatment.

Yankang Plastic Machinery has always insisted on technological innovation, and on this basis, new blow-molded new products have been developed, such as canoes, solar float, mobile toilet, rain buckets, floating dock, trash can and septic tank blow molding machines, and so on.

Septic Tank Daily Output: 100-300PC

Delivery Date: 3-4 Month
Availability:
Quantity:
Configuration & Parameter


1. Underground Septic Tank Blow Molding Machine Series



Specifications 2 layers
Extruders Screw Diameter ∮100/100
Motor 90/90kw
Plasticizing Capacity 450 kg/h
L/D 32/1
Max Screw Speed 60 RPM
Die Head Accumulator Capacity 94kg
Heating Load 90kw
Max. parison Weight 94kg
Clamping Unit Clamping Platen Size 2100*2200mm
Clamping Force 2200 KN
Mould Thickness 1000-2200mm
Hydraulic System Hydraulic Drive Motor (Main) 45kw
Hydraulic Drive Motor (Parison Control) 7.5kw
Oil Tank Capacity 1200L
Machine Weight
65 Ton
Dimension L*W*H 12m*4.5m*7.2m
Total Power
350kw
Average Power Consumption
250kw

2. Leading International Technology

For example:

Use original SIEMENS control systems. Guarantee high quality, safe and stable operation. At the same time, it provides after-sales international services.

For more advanced configurations, please refer to the following figure.

SR Description of Parts Brand Origin
1 PLC SIEMENS Germany
2 Touch Screen SIEMENS Germany
3 Inverter SIEMENS Germany
4 Screw Motor SIEMENS Germany
5 Air Switch SIEMENS Germany
6 Contactor SIEMENS Germany
7 SSR(Solid State Relay) CARLO GAWAZZI Switzerland
8 Wall Thickness Controller MOOG USA
9 Servo Valve YUKEN Japan
10 Hydraulic Valve YUKEN Japan
11 Solenoid Valve YUKEN Japan

3. Multi-layers Die Head Technology

First, multi-layer mold design makes the wall thickness uniform and stable. Second,it can increase production efficiency by 5 times. Finally,the utilization rate of recycled materials increased by 4 times.

yankang blow molding machine die head technology


Customer Service


1. Special Design
Qingdao Yankang Plastic Machinery Co., Ltd. is the largest professional blow molding machine integration enterprise in China, including product research and development, production, sales, and after-sales service. It is the pioneer and leader of the large blow molding machine. The company has its own professional research and development base.
The core technology is 100% independent R&d innovation. According to the needs of customers and the situation of the site, we can use the private customized model to create suitable products for customers.
Customized products: various blow molding machines including water tanks, IBC, road barriers, pallets, etc, and blow molds with different capacities.

2. After-sales Service
TRAINING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory during the periods of installing & adjusting;

INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines for one week(free of charge) in the Buyer's factory. After one week, if the Buyer still needs the training,$100 should be paid to the engineer.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in the buyer's factory. And the Buyer should also pay for the air ticket for the engineer.

GUARANTEE
The guarantee time is one year after the machines normally work in the Buyer's factory if only the problem is caused due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.

3. Sales Network

Now, Qingdao Yankang Plastic Machinery Co., Ltd. has successfully occupied the world's major markets. With excellent quality assurance and perfect after-sales service, it has won high praise from customers at home and abroad. The company's products have spread to 45 countries and regions. These include Southeast Asia, the Middle East, Europe, the Americas, Australia, Africa, and so on. It has become the well-deserved "leader" in the blow molding machine industry in China.


Applications


septic tank


FAQ


Q1: How long is the warranty on this machine?

A1: The whole machine's warranty period is 12 months and key parts will be dependent.


Q2: Are you an integrated supplier for extrusion molding machines, mold, and auxiliary machinery?

A2: Yes, we can provide the complete solution line to customers according to the customer's requirements.


Q3: How about the quality control in your factory?

A3: Yankang has the SOP (Standard Operation Procedure) and all the production steps must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.


Q4: Will you offer the pre-sales service?

A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold, and auxiliary machinery selection but also water, electrical, machine layout in the factory, etc.


Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?

A5: Surely, we have many experience technical engineers for oversea service, they would help you install machines and support training to workers as well.


Q6: What is the delivery time of the machine?

A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 2-3 months.


Q7: Mold trial will be available in the Yankang factory?

A7: Yes, the customer can send the mold to the Yankang factory and test it.


Q8: Do you provide any spare parts with the machine?

A8: Yes, Yankang will provide one set of standard spare parts to customers.
