Mobile Toilet Blow Molding Machine

In order to ensure that the products are better adapted to the market and expand the market scale, the Yankang team continues to meet the challenges and continue to innovate and improve the blow molding machine technology.

On this basis, new blow-molded new products have been developed, such as canoes, solar inner, mobile toilet, floating solar, floating dock, and septic tank blow molding machines, and so on.

Mobile Toilet Daily Output: 100-300PC

Delivery Date: 3-4 Month

Availability:

Quantity:



Inquire

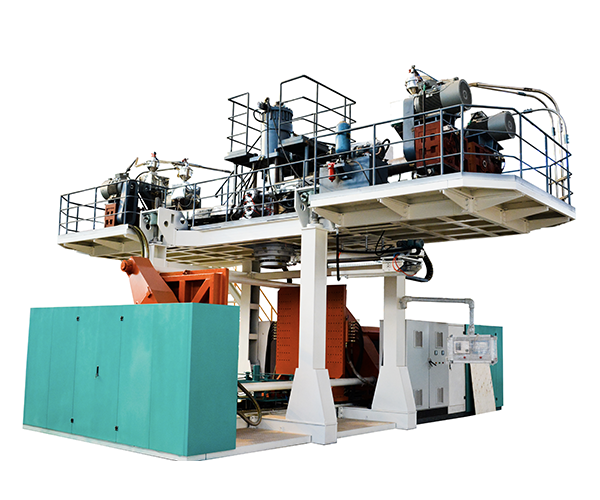

Mobile Toilet Blow Molding Machine

Configuration & Parameter

1.Technical data for YK Mobile Toilet series

Technical Data for YK Mobile Toilet Series
Model No.		YK 5000L-2	YK 5000L-3	YK 5000L-4
	Specifications	3 layers	3 layers	4 layers
Extruders	Screw Diameter	∮125/125	∮110*3	∮100*4
	Motor	132/132kw	110*3kw	75*4kw
	Plasticizing Capacity	700kg/h	750kg/h	800kg/h
	L/D	35/1	32/1	32/1
	Max Screw Speed	50RPM	50RPM	50RPM
Die Head	Accumulator Capacity	180L	180L	190L
	Heating Load	118kw	125kw	134kw
	Max. Parison Weight	150kg	150kg	160kg
Clamping Unit	Clamping Platen Size	2400*2600mm	2400*2600mm	2400*2600mm
	Max Mould Size	2350*2800mm	2350*2800mm	2350*2800mm
	Clamping Force	3500 KN	3500 KN	3500 KN
	Mould Thickness	1550-2200mm	1550-2200mm	1550-2200mm
Hydraulic System	Hydraulic Drive Motor (Main)	80kw	80kw	80kw
	Hydraulic Drive Motor (Parison Control)	11kw	11kw	11kw
	Oil Tank Capacity	1500L*2	1500L*2	1500L*2
Machine Weight		120 Ton	150 Ton	180 Ton
Dimension	L x W x H	15m13m8.5m	15m13m8.5m	15m13m8.5m
Total Power		580kw	660kw	666kw
Average Power Consumption		298kw	332kw	385kw

2.Leading International Technology

For example:

Use original SIEMENS control systems. Guarantee high quality, safe and stable operation. At the same time, it provides after-sales international services.

For more advanced configurations, please refer to the following figure.

SR	Description of Parts	Brand	Origin
1	PLC	SIEMENS	Germany
2	Touch Screen	SIEMENS	Germany
3	Inverter	SIEMENS	Germany
4	Screw Motor	SIEMENS	Germany
5	Air Switch	SIEMENS	Germany
6	Contactor	SIEMENS	Germany
7	SSR(Solid State Relay)	CARLO GAWAZZI	Switzerland
8	Wall Thickness Controller	MOOG	USA
9	Servo Valve	YUKEN	Japan
10	Hydraulic Valve	YUKEN	Japan
11	Solenoid Valve	YUKEN	Japan

3.Multi-layers Die Head Technology

First, multi-layer mold design makes the wall thickness uniform and stable. Second，it can increase production efficiency by 5 times. Finally，the utilization rate of recycled materials increased by 4 times.

yankang blow molding machine die head technology

Customer Service

1.Special Design
Qingdao Yankang Plastic Machinery Co., Ltd. is the largest professional blow molding machine integration enterprise in China, including product research and development, production, sales, and after-sales service. It is the pioneer and leader of the large blow molding machine. The company has its own professional research and development base.
The core technology is 100% independent R&d innovation. According to the needs of customers and the situation of the site, we can use the private customized model to create suitable products for customers.
Customized products: various blow molding machines including water tanks, IBC, road barriers, pallets, etc, and blow molds with different capacities.

2.After-sales Service
TRAINING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory during the periods of installing & adjusting;

INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines for one week(free of charge) in the Buyer's factory. After one week, if the Buyer still needs the training,$100 should be paid to the engineer.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in the buyer's factory. And the Buyer should also pay for the air ticket for the engineer.

GUARANTEE
The guarantee time is one year after the machines normally work in the Buyer's factory if only the problem is caused due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.

3.Sales Network

Now, Qingdao Yankang Plastic Machinery Co., Ltd. has successfully occupied the world's major markets. With excellent quality assurance and perfect after-sales service, it has won high praise from customers at home and abroad. The company's products have spread to 45 countries and regions. These include Southeast Asia, the Middle East, Europe, the Americas, Australia, Africa, and so on. It has become the well-deserved "leader" in the blow molding machine industry in China.

Applications

mobile toilet

FAQ

Q1: What is the warranty of the machine?

A1: The whole machine's warranty period is 12 months and key parts will be dependent.

Q2: Are you an integrated supplier for extrusion molding machines, mold, and auxiliary?

A2: Yes, we can provide the complete solution line to customers according to the customer's requirements.

Q3: How about the quality control in your factory?

A3: Yankang has the SOP (Standard Operation Procedure) and all the production steps must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment. .

Q4: Will you offer the pre-sales service?

A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold, and auxiliary selection but also water .electrical, machine layout in the factory, etc.

Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?

A5: Surely, we have many experience technical engineers for oversea service, they would help you install machines and support training to workers also.

Q6: What is the delivery time of the machine?

A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 2-3 months.

Q7: Mold trial will be available in the Yankang factory?

A7: Yes, the Customer can send the mold to the Yankang factory and test it.

Q8 . Do you provide any spare parts with the machine?

A8: Yes, Yankang will provide one set of standard spare parts to customers.
